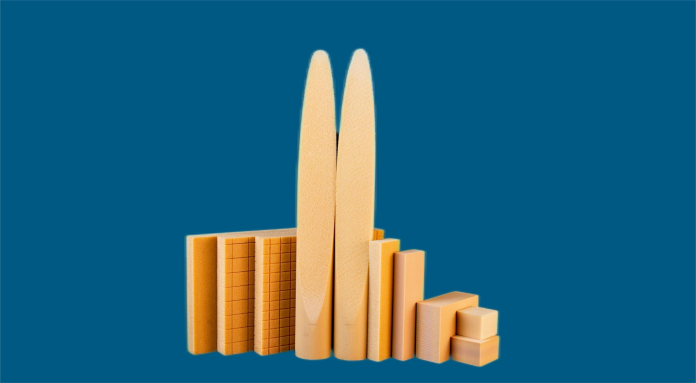

HXCELL-X Series Core Materials
HXCELL-X series is a rigid cross-linked closed cell PVC structural foam material with glue absorption rate that is more than 30% lower than similar products. In liquid resin infusion processes, HXCELL-X has a reduced resin absorption, which thereby decreses product weight.
HXCELL-X series uses a water suspension foaming process, which not only completes the cross-linked structure and makes the foaming more uniform, but also totally avoid the original plate warping and hot pressing caused by the internal structure damage. HXCELL-X series has the characteristics of low water absorption and strong anti-corrosion. Also, its fine microporous structure makes the foam surface has good adhesion.
All these characteristics make the HXCELL-X series suitable for a variety of resin systems and processes. With the large selection range combined with its lightweight characteristics, HXCELL-X is thus an ideal core material for lightweight sandwich structures that can withstand static/dynamic loads.
HXCELL-X series products have the density range from 60kg/m3 to 130kg/m3, and is widely used in wind energy, Marine, medical instruments, special equipment and aerospace and other fields.
HXCELL-X Series Products Performance
Types | Standards | Units | Results | X60 | X80 | X100 | X130 |
Density | ISO 845 | kg/m3 | Average | 60 | 80 | 100 | 130 |
Range | 54-69 | 72-92 | 90-110 | 120-150 |
Compressive strength | ISO 844:2006 | MPa | Average | 1.01 | 1.45 | 2.12 | 2.13 |
Minimum | 0.9 | 1.21 | 1.8 | 2.75 |
Modulus of compression | ISO 844:2006 | MPa | Average | 76.1 | 115 | 178 | 214 |
Minimum | 70 | 100 | 146 | 180 |
Shear strength | ISO 1922:2012 | MPa | Average | 0.776 | 1.05 | 1.43 | 2.03 |
Minimum | 0.7 | 0.85 | 1.3 | 1.81 |
Shear modulus | ISO 1922:2012 | MPa | Average | 21.2 | 30.6 | 38 | 53 |
Minimum | 18 | 25 | 32 | 43 |
Tensile strength | ASTM C297 | MPa | Average | 1.88 | 2.36 | 3.4 | 4.4 |
Minimum | 1.7 | 2.01 | 2.95 | 3.4 |
Tensile modulus | ASTM C297 | MPa | Average | 82.4 | 123 | 176 | 208 |
Minimum | 75 | 101 | 158 | 176 |
*Note: The above data are the average results of various products from the production routine test. Statistical minimums that meet the design requirements
of each classification society are available upon request.
HXCELL-X Series Products Characteristics
● Low resin absorption rate
● Low water absorption rate
● 100% obturator structure
● Sound and heat insulation
● High strength/rigidity-weight ratio
● Excellent fire resistance
● Impact resistance
● Compatible with multiple resin systems
